Basic parameters of AMD 5600G, 5700G
AMD 5600G and 5700G both use the latest ZEN3 architecture and 7-nanometer process. The TDP power consumption is 65W, and both support 3200 frequency memory. The difference lies in the number and frequency of nuclear display.
AMD 5600G has 6 cores and 12 threads. The base frequency is 3.9GHz, and the acceleration frequency is 4.4GHz. The GPU has 7 cores and a frequency of 1900 Hz.
AMD 5700G has 8 cores and 12 threads. The base frequency is 3.9GHz, and the acceleration frequency is 4.4GHz. The GPU has 8 cores and a frequency of 2000 Hz.
AMD 5600G, 5700G gaming performance

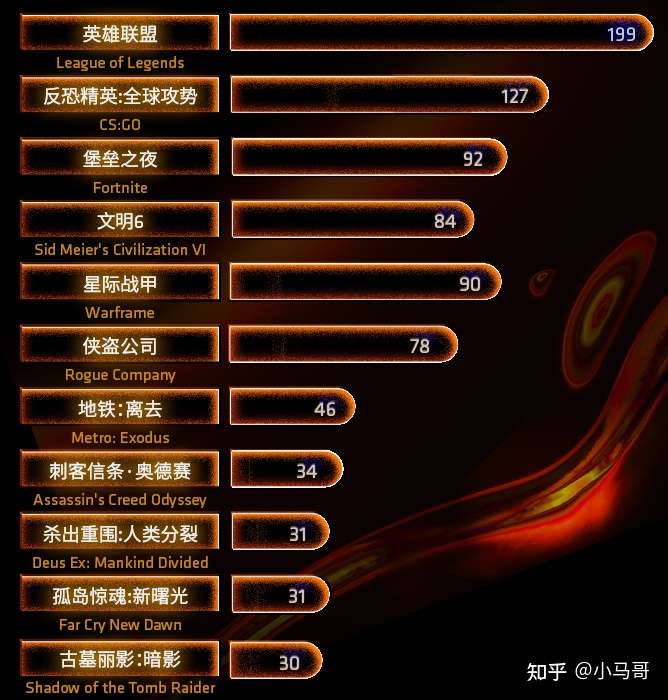

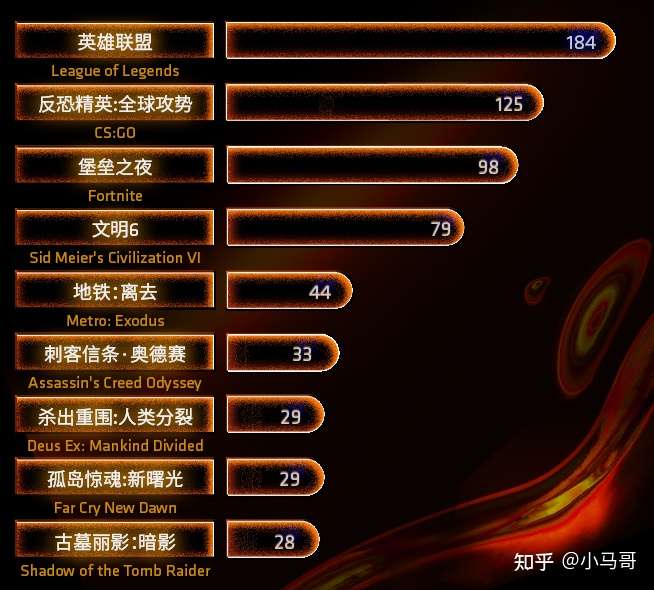

From the official 1080P resolution game running score, it can be seen that the core displays of these two CPUs can cope with the current popular LOL and CSGO games. The 3A masterpiece is still a bit difficult. The effect of about 30 frames can only barely play. Compared with 5600G, the integrated core display of 5700G has a little increase in frequency and number of cores, and the game effect brought by it is also so little.
Recommended motherboards for AMD 5600G and 5700G

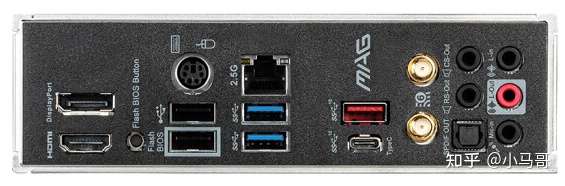

The motherboard is recommended to match the B550M WIFI motherboard of the three major manufacturers. MSI’s B550M Mortar WIFI , Asus’ TUF GAMING B550M-PLUS WIFI, Gigabyte’s AORUS PRO AX. All three motherboards have HDMI and DP interfaces. MSI uses 8+2+1 power supply, ASUS uses 8+2 power supply, and Gigabyte uses 10+2 power supply. The other configurations are basically the same, with two M.2 solid-state drive interfaces. All with WIFI6 wireless network card. The 3 motherboards only ASUS B550M heavy gunner does not use an integrated IO panel.
Recommended heat dissipation for AMD 5600G and 5700G
5600G and 5700G have their own heat dissipation. 5600G can consider using its own heat dissipation. You can also consider using air cooling at around $35. Such as PA120 . Although the TDP power consumption is 65W, the heat of the GPU and the CPU core is definitely not small. Conditional users are recommended to use 240 water cooling .
Recommended memory for AMD 5600G and 5700G
It is recommended to match the memory with a frequency above 3200 . It is recommended to use 16G, and qualified users can use 32G. This is because the core graphics take up memory as video memory.
AMD 5600G, 5700G solid state drive recommendation
AMD 5600G, 5700G do not support PCIE4.0, so there is no need to spend a lot of money to choose PCIE4.0 solid state. It is recommended to choose Western Digital SN550 or Kioxia RC10 for solid-state drives . Western Digital SN550 recommends the 1T version. The 500G Western Digital SN550 does not have a cache chip, so it is not recommended. Kioxia’s RC10 can be selected for 500G capacity.
Recommended power supply for AMD 5600G and 5700G
The TDP power consumption of AMD 5600G and 5700G is 65W. In theory, it can be equipped with a 200W power supply. But for a host to be stable and durable, a good power supply is the key. It is recommended that you use a 450W bronze power supply.
Recommended chassis for AMD 5600G and 5700G
The case can use Cooler Master Q300L . It matches the M-ATX motherboard. The front supports the installation of 240 water cooling. Supports air-cooled heat dissipation with a height of 159mm.

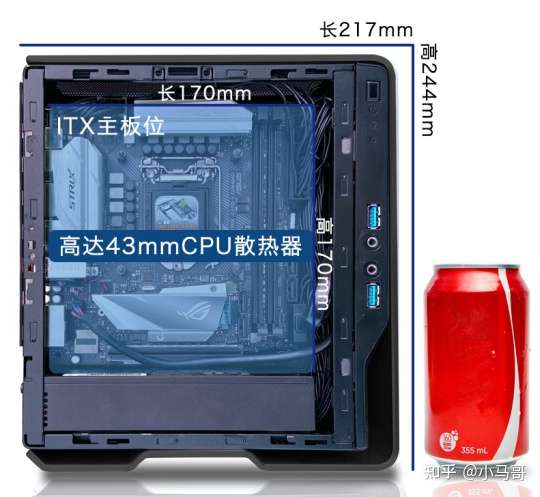

Since I am considering buying 5600G and 5700G, I think most users will not consider using a Discrete graphics card. You can also consider replacing the motherboard with a B550I motherboard . The chassis uses Cooler Master NR200 or IN WIN Chopin ITX chassis.
Note: The following chassis motherboard needs to be replaced with an ITX motherboard.
The recommended installation configuration list for AMD 5600G and 5700G is as follows:
| hardware | model |
|---|---|
| CPU | AMD 5600G AMD 5700G |
| Motherboard | MSI Mortar B550M WIFI |
| Heat dissipation | Cooler Master B240 water cooling |
| RAM | Kingston 3200 16G |
| Solid state | Samsung 970 EVO PLUS 1T |
| power supply | SUPER FLOWER 450W |
| Chassis | Cooler Master Q300L |
The AMD 5600G ITX PC installation plan is as follows:
| hardware | model |
|---|---|
| CPU | AMD 5600G |
| Motherboard | ASRock B550M-ITX/ac |
| Heat dissipation | CPU comes with |
| RAM | Kingston 3200 16G |
| Solid state | Samsung 970 EVO PLUS 1T |
| power supply | The case comes with |
| Chassis | IN WIN Chopin |
Summarize
The pricing of 5600G and 5700G is more reasonable and close to the people, and the performance and craftsmanship are also very good. The core display performance can also cope with many popular games at present, and it is also very good for office users. At present, the price of graphics cards is high, and 5600G and 5700G will find a position that suits them. It is recommended that users who purchase 5600G and 5700G do not consider upgrading the independent display in the future.
